PTFE Bellows

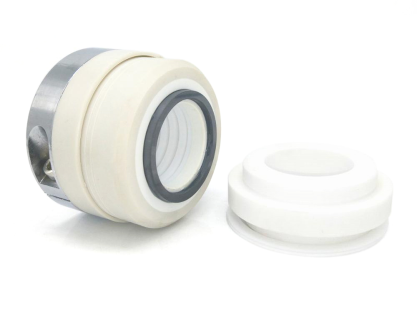

WB2 152 Mechanical Seal

• Operating Limits: Temperature: -20℃ - +180℃, Pressure: ­­≤ 20bar, Speed: ­≤ 15m/s, Shaft size: ­25mm - 65mm
• Materials:
• Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide
• Elastomer: PTFE
• Metal Part: SS304, SS316
• Applicable Pump Models:

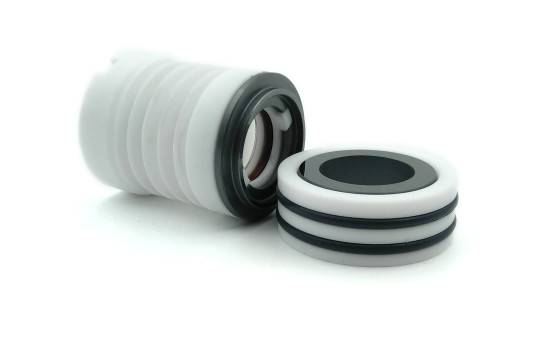

WB3 Mechanical Seal

• Operating Limits: Temperature: -20℃ - +180℃, Pressure: ­­≤ 15bar, Speed: ­≤ 15m/s, Shaft size: ­25mm
• Materials:
• Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide
• Elastomer: PTFE
• Metal Part: SS304, SS316, AM350
• Applicable Pump Models:
