Rubber Bellow

Home   |   Rubber Bellow

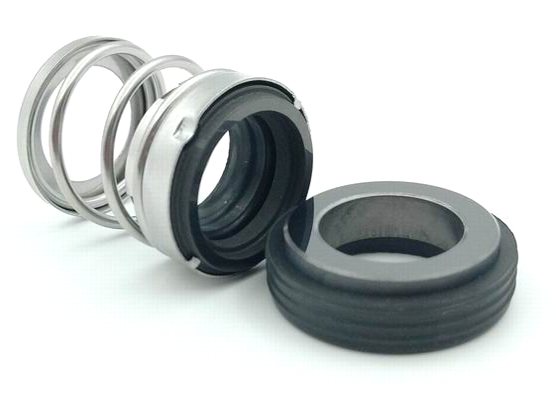

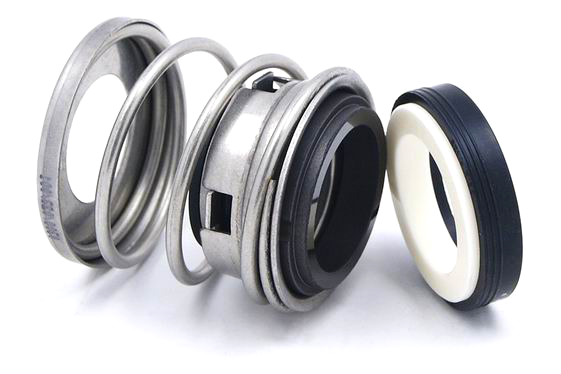

FT-502

  • Operating Limits: Operating Limits: ● Temperature:-40℃ - +180℃ ● Pressure：­­≤ 25bar ● Speed: ­≤ 15m/s ● Shaft size: ­12mm - 100mm
  • Materials:
  • Seal Rings: A, B, Q1/12, Q2/22, U1/12, U2/22
  • Elastomer:VITON, EPDM, NBR, FFKM, AFLAS
  • Metal Part: SS304
  • Applicable Pump Models: Equivalent to John Crane Type 502

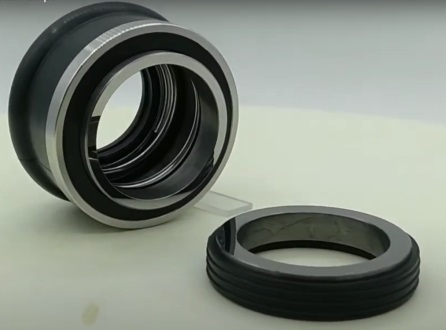

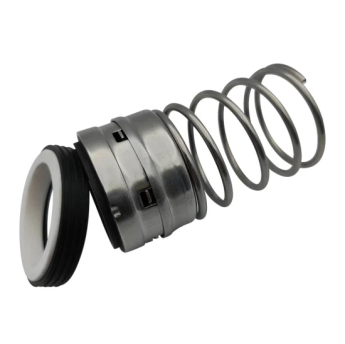

FT-2100 2100k

  • Operating Limits: Operating Limits: ● Temperature:-20℃ - +180℃ ● Pressure：­­≤ 12bar ● Speed: ­≤ 13m/s ● Shaft size: ­10mm - 75mm
  • Materials:
  • Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide
  • Elastomer:VITON, EPDM, NBR, FFKM, AFLAS
  • Metal Part: SS304
  • Applicable Pump Models: Equivalent To: John Crane 2100/2100K

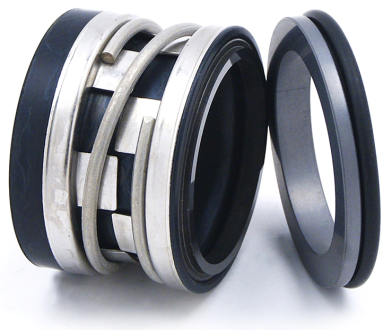

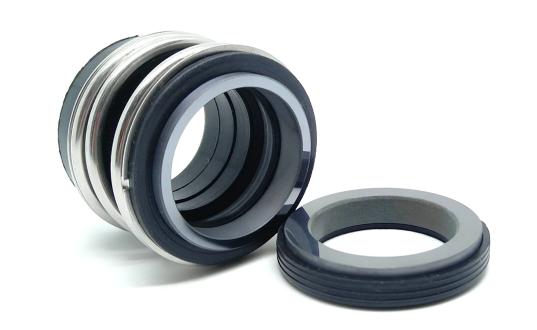

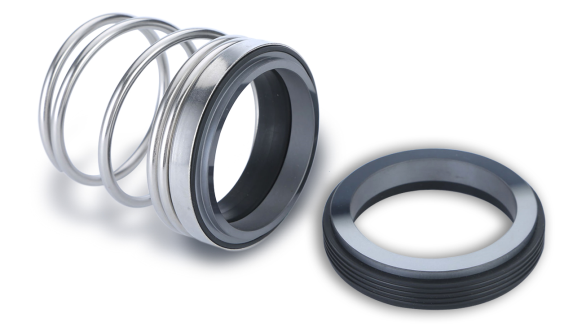

FT-MG1 MG12 MG13

  • Operating Limits:● Temperature:-20℃ - +200℃ ● Pressure：­­≤ 16bar ● Speed: ­≤ 10m/s ● Shaft size: ­12mm-120mm
  • Materials:
  • Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide
  • Elastomer:VITON, EPDM, NBR, FFKM, AFLAS
  • Metal Part: SS304, SS316
  • Applicable Pump Models: Equivalent To: Eagle Burgmann MG1/MG12/MG13, AESSEAL B02/B012/B013, Vulcan 191/192/193

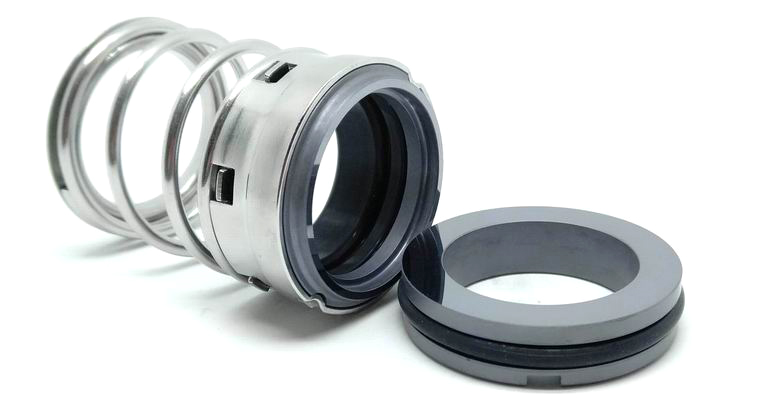

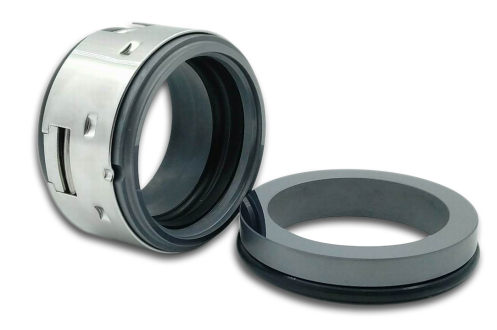

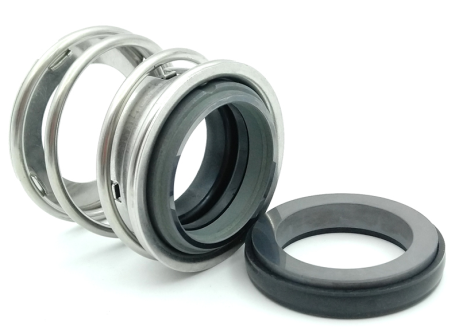

FT-TYPE 1

  • Operating Limits: ● Temperature:-40℃ - +200℃ ● Pressure：­­≤ 17bar ● Speed: ­≤ 13m/s ● Shaft size: ­1"- 3.5"
  • Materials:
  • Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide
  • Elastomer:VITON, EPDM, NBR, FFKM, AFLAS
  • Metal Part: SS304, SS316, Duplex, Hastelloy C
  • Applicable Pump Models: Equivalent To: John Crane Type 1

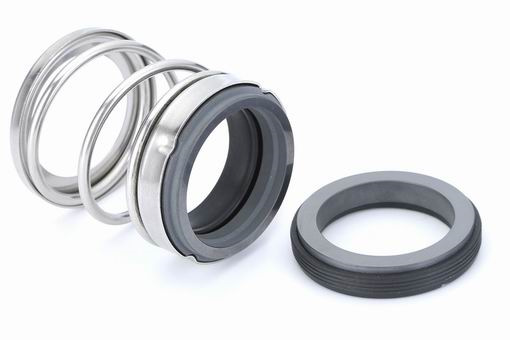

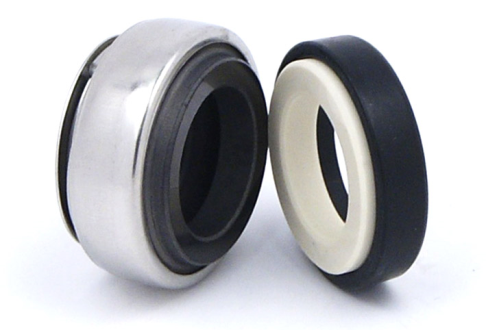

FT-TYPE 2

  • Operating Limits: ● Temperature:-40℃ - +200℃ ● Pressure：­­≤ 14bar ● Speed: ­≤ 15m/s ● Shaft size: ­0.5"- 3"
  • Materials:
  • Seal Rings: A, B, Q1/12, Q2/22, U1/12, U2/22
  • Elastomer:VITON, EPDM, NBR, FFKM, AFLAS
  • Metal Part: SS304, SS316, Duplex, Hastelloy C
  • Applicable Pump Models: Equivalent To: John Crane Type 2

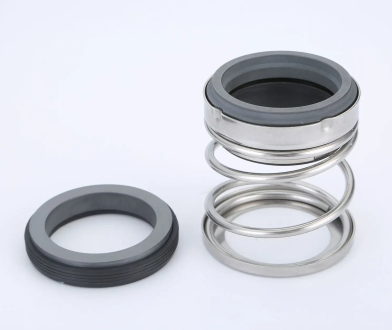

FT-FBD

  • Operating Limits: ● Temperature:-20℃ - +180℃ ● Pressure：­­≤ 12bar ● Speed: ­≤ 16m/s ● Shaft size: ­16mm-120mm
  • Materials:
  • Seal Rings: A, B, Q1/12, Q2/22, U1/12, U2/22
  • Elastomer:VITON, EPDM, NBR, FFKM, AFLAS
  • Metal Part: SS304
  • Applicable Pump Models:

FT-560

  • Operating Limits: ● Temperature:-30℃ - +180℃ ● Pressure：­­≤ 10bar ● Speed: ­≤ 12m/s ● Shaft size: ­10mm - 55mm(560A)/ 0.375" - 3"(560B)/ 16mm - 75mm(560C)
  • Materials:
  • Seal Rings: A, B, Q1/12, Q2/22, U1/12, U2/22
  • Elastomer:VITON, EPDM, NBR
  • Metal Part: SS304
  • Applicable Pump Models:Equivalent To: Eagle 560

FT-BIA

  • Operating Limits: ● Temperature:-30℃ - +200℃ ● Pressure：­­≤ 10bar ● Speed: ­≤ 10m/s ● Shaft size: ­14mm - 90mm
  • Materials:
  • Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide
  • Elastomer:VITON, EPDM, NBR
  • Metal Part: SS304
  • Applicable Pump Models:

FT-301

  • Operating Limits: ● Temperature:-20℃ - +150℃ ● Pressure：­­≤ 4bar ● Speed: ­≤ 10m/s ● Shaft size: ­10mm - 70mm
  • Materials:
  • Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide
  • Elastomer:VITON, EPDM, NBR
  • Metal Part: SS304
  • Applicable Pump Models: Equivalent To: Burgmann BT-AR

FT-JC Type E

  • Operating Limits: ● Temperature:-30℃ - +200℃ ● Pressure：­­≤ 10bar ● Speed: ­≤ 12m/s ● Shaft size: ­0.3125"-1.125"
  • Materials:
  • Seal Rings: A, B, Q1/12, Q2/22, U1/12, U2/22
  • Elastomer:VITON, EPDM, NBR
  • Metal Part: SS304
  • Applicable Pump Models: Equivalent To: John Crane Type 106

FT-Hidrostal KB

  • Operating Limits: ● Temperature:-30℃ - +200℃ ● Pressure：­­≤ 10bar ● Speed: ­≤ 12m/s ● Shaft size: ­28mm-50mm / 1.125"- 2"
  • Materials:
  • Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide
  • Elastomer:VITON, EPDM, NBR
  • Metal Part: SS304, SS316, Duplex, Hastelloy C
  • Applicable Pump Models:Equivalent To: Hidrostal KB

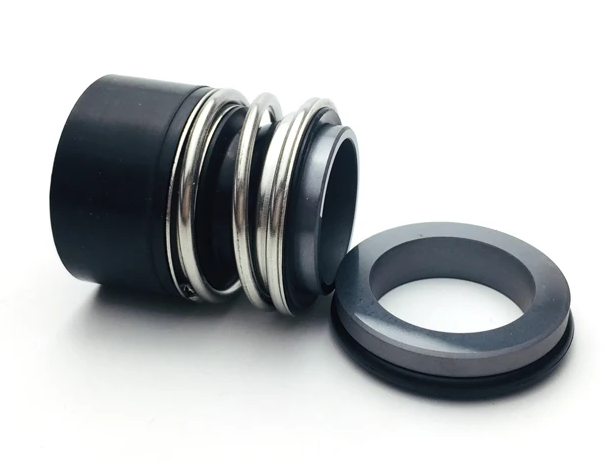

FT-MG9

  • Operating Limits: ● Temperature:-30℃ - +200℃ ● Pressure：­­≤ 10bar ● Speed: ­≤ 10m/s ● Shaft size: ­24mm-53mm/1.125"- 1.75"
  • Materials:
  • Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide
  • Elastomer:VITON, EPDM, NBR
  • Metal Part: SS304
  • Applicable Pump Models:Equivalent To: EagleBurgmann MG9

FT-Type 21

  • Operating Limits: ● Temperature: -30℃ - +120℃ ● Pressure：­­≤ 10bar ● Speed: ­≤ 15m/s ● Shaft size: 0.5” - 3”
  • Materials:
  • Seal Rings: A, B, Q1/12, Q2/22, U1/12, U2/22
  • Elastomer:VITON, EPDM, NBR
  • Metal Part: SS304
  • Applicable Pump Models: Equivalent To: John Crane Type 21

FT-MG4

  • Operating Limits:
  • Materials:
  • Seal Rings: Resin Carbon, Antimony Carbon, SIC, SSIC, Tungsten Carbide
  • Elastomer:VITON, EPDM, NBR
  • Metal Part: SS304, SS316, DUPLEX
  • Applicable Pump Models:Burgmann MG4-S3 Mechanical Seal Replacement
